Imagine you're playing your favorite video game. Your character needs to slide under a wall, flip over a laser, or spin around to dodge a trap. Guess what? You are already a master of Geometry Transformations! 🎮

On the ISEE, transformations are just a fun shape manipulation game. There are three main moves you need to know. First, a 'translation' is just a fancy math word for sliding. Think of sliding a fresh pizza box across the dinner table to your friend. 🍕 The shape doesn't turn or flip; it just moves left, right, up, or down. Second, a 'reflection' is a flip. It’s exactly like looking in a mirror. On a math grid, we usually flip shapes over the $x$ -axis (the horizontal line) or the $y$ -axis (the vertical line). Third, a 'rotation' is a spin, just like a fidget spinner or a steering wheel.

Finally, the test might ask you about 'symmetry'. Symmetry is when you can fold a shape perfectly in half so both sides match, just like the wings of a beautiful butterfly! 🦋 The ISEE loves to test these simple moves on a coordinate grid. The best part? You don't need magic to solve them. If you can count spaces on a board game, you can slide, flip, and spin your way to the right answer!

Key Formula

Reflection Rules: Flipping over the

x

-axis changes the

y

sign:

(x, y) \to (x, - y)

. Flipping over the

y

-axis changes the

x

sign:

(x, y) \to (- x, y)

. Translation Rule: Sliding right/left changes

x

, sliding up/down changes

y

(x, y) \to (x + a, y + b)

Practice Questions

4 practice questions for ISEE Upper Level

Q1 Hard

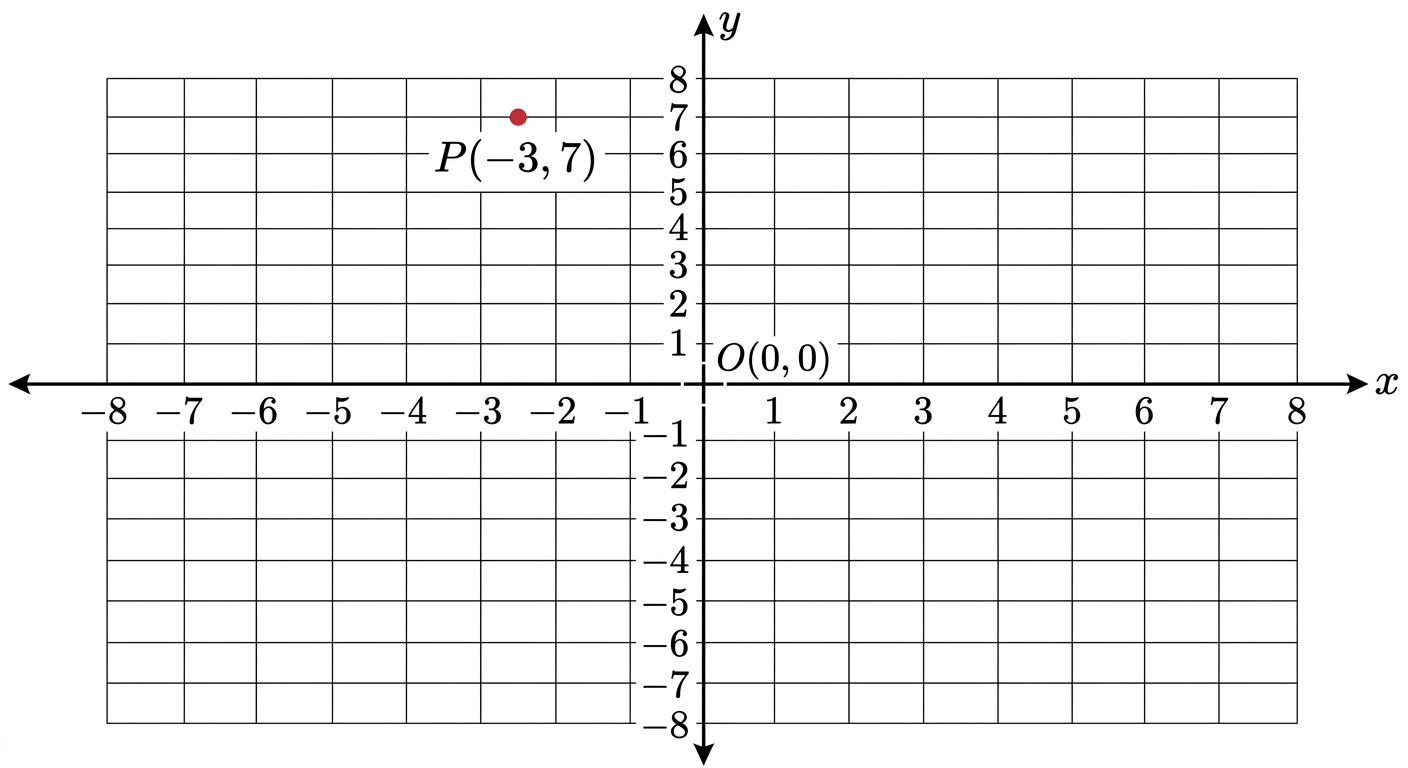

Point

P (- 3, 7)

is rotated

27 0^{\circ}

counterclockwise about the origin. What are the coordinates of the transformed point

P^{'}

(- 7, - 3)

B (7, 3)

(- 7, 3)

(7, - 3)

Show Solution

A $27 0^{\circ}$ counterclockwise rotation (which is equivalent to a $9 0^{\circ}$ clockwise rotation) about the origin transforms a point (x, y) to $(y, - x)$ .

Given $P (- 3, 7)$ , we have $x = - 3$ and $y = 7$ .
Applying the transformation rule:
$P^{'} (y, - x) = P^{'} (7, - (- 3))$
P'(7, 3)
So, the coordinates of $P^{'}$ are (7, 3).

Answer: B

Q2 Hard

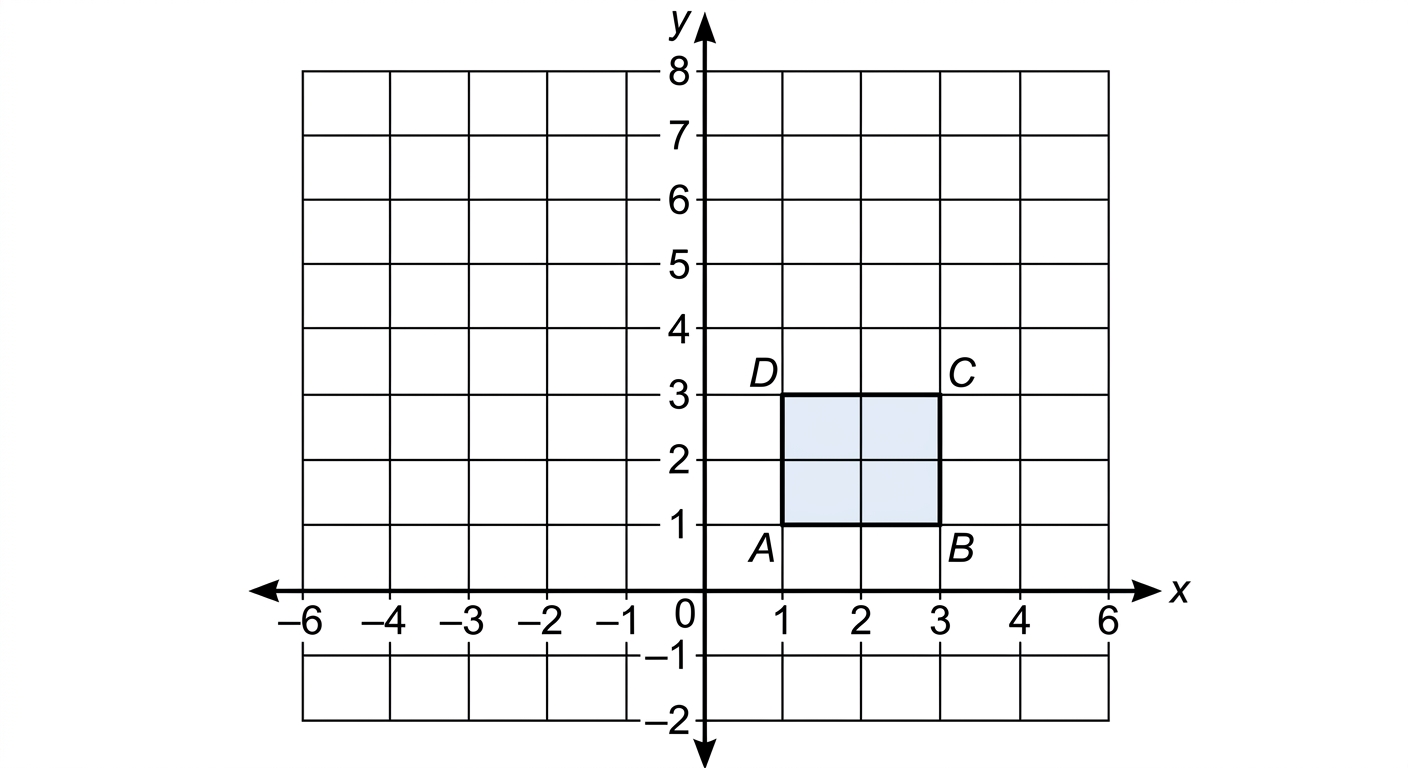

A square

A B C D

has vertices A(1, 1), B(3, 1), C(3, 3), and D(1, 3). The square is first reflected across the y-axis, and then translated by the vector

< - 2, 4 >

. What is the area of the region covered by both the original square

A B C D

and the final transformed square

A^{''} B^{''} C^{''} D^{''}

0

square units

1

square unit

2

square units

4

square units

Show Solution

1. Reflect across the y-axis:

A reflection across the y-axis transforms a point (x, y) to $(- x, y)$ .
$A (1, 1) - > A^{'} (- 1, 1)$
$B (3, 1) - > B^{'} (- 3, 1)$
$C (3, 3) - > C^{'} (- 3, 3)$
$D (1, 3) - > D^{'} (- 1, 3)$
2. Translate by the vector $< - 2, 4 >$ :

A translation by $< - 2, 4 >$ means subtracting $2$ from the x-coordinate and adding $4$ to the y-coordinate of each point.
$A^{'} (- 1, 1) - > A^{''} (- 1 - 2, 1 + 4) = A^{''} (- 3, 5)$
$B^{'} (- 3, 1) - > B^{''} (- 3 - 2, 1 + 4) = B^{''} (- 5, 5)$
$C^{'} (- 3, 3) - > C^{''} (- 3 - 2, 3 + 4) = C^{''} (- 5, 7)$
$D^{'} (- 1, 3) - > D^{''} (- 1 - 2, 3 + 4) = D^{''} (- 3, 7)$
3. Analyze the overlap between the original and transformed squares:

The original square $A B C D$ occupies the region where $1 \leq x \leq 3$ and $1 \leq y \leq 3$ .
The transformed square $A^{''} B^{''} C^{''} D^{''}$ occupies the region where $- 5 \leq x \leq - 3$ and $5 \leq y \leq 7$ .
Comparing the x-ranges [1, 3] and $[- 5, - 3]$ , there is no overlap.
Comparing the y-ranges [1, 3] and [5, 7], there is also no overlap.
Since the two squares do not intersect at all, the area of the region covered by both (their intersection) is $0$ square units.

Answer: A

Q3 Hard

A regular polygon has

n

sides. If the smallest angle of rotational symmetry for this polygon is

2 4^{\circ}

, what is the value of

n

10

12

15

18

Show Solution

For a regular polygon with $n$ sides, the smallest angle of rotational symmetry is given by the formula $(36 0^{\circ}) / n$ .

We are given that the smallest angle of rotational symmetry is $2 4^{\circ}$ .
So, we can set up the equation:
$(36 0^{\circ}) / n = 2 4^{\circ}$
To find $n$ , we can rearrange the equation:
$n = (36 0^{\circ}) / (2 4^{\circ})$
$n = 15$
Therefore, the polygon has $15$ sides.

Answer: C

Q4 Hard

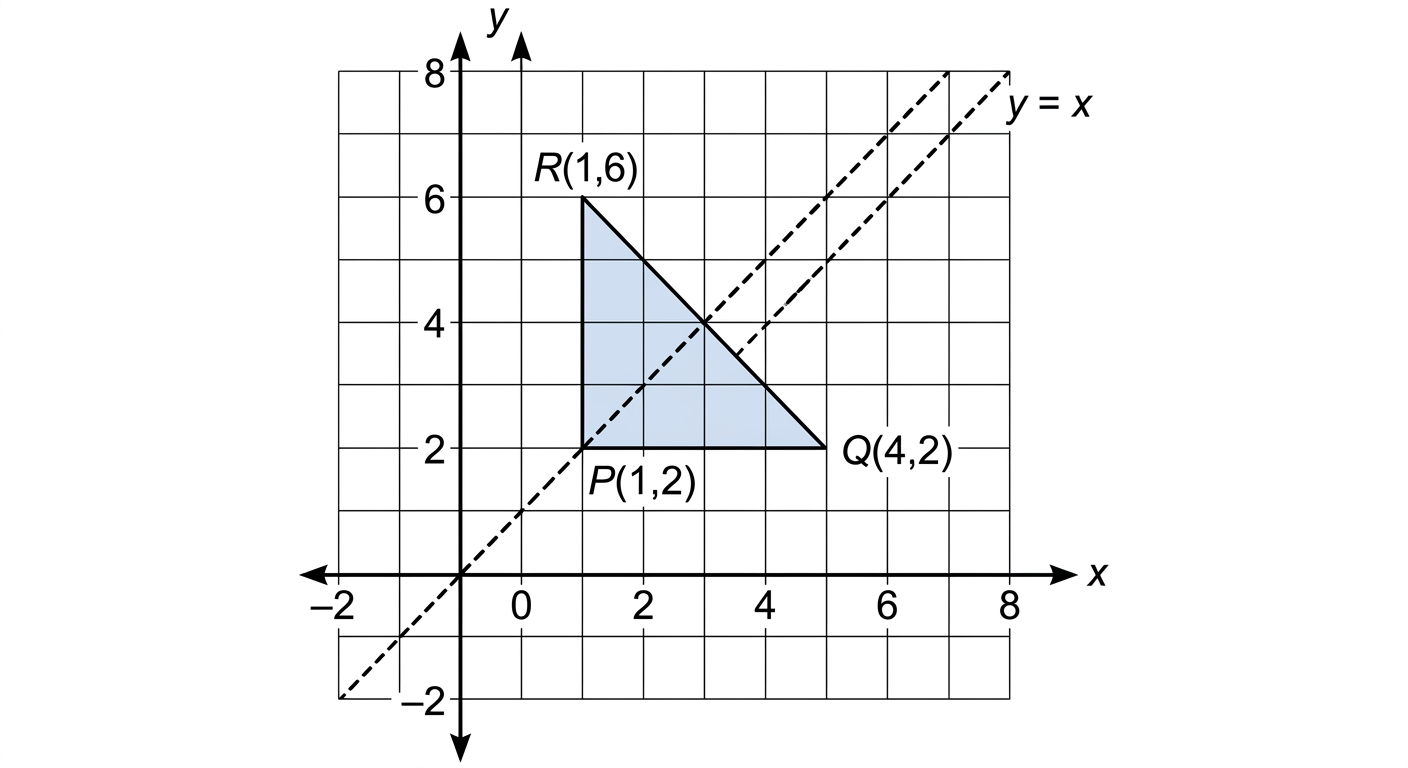

A triangle has vertices P(1, 2), Q(4, 2), and R(1, 6). This triangle is first reflected across the line

y = x

, and then translated by the vector

< - 3, - 1 >

. What is the area of the transformed triangle

P^{''} Q^{''} R^{''}

6

square units

8

square units

10

square units

12

square units

Show Solution

1. Calculate the area of the original triangle $P QR$ :

The vertices are P(1, 2), Q(4, 2), and R(1, 6).
Notice that the y-coordinates of $P$ and $Q$ are both $2$ , meaning segment $P Q$ is horizontal. Its length is $ba se = ∣4 - 1∣ = 3$ units.
Notice that the x-coordinates of $P$ and $R$ are both $1$ , meaning segment $P R$ is vertical. Its length is $h e i g h t = ∣6 - 2∣ = 4$ units.
Since $P Q$ is horizontal and $P R$ is vertical, they are perpendicular, forming a right angle at $P$ . Thus, $P QR$ is a right-angled triangle.
Area of $P QR = (\frac{1}{2}) \times ba se \times h e i g h t = (\frac{1}{2}) \times 3 \times 4 = (\frac{1}{2}) \times 12 = 6$ square units.
2. Understand the effect of transformations on area:

Reflections and translations are types of rigid transformations (also known as isometries). Rigid transformations preserve distance, angle measures, and shape, which means they also preserve area.
3. Conclusion:

Since reflections and translations are rigid transformations, the area of the transformed triangle $P^{''} Q^{''} R^{''}$ will be exactly the same as the area of the original triangle $P QR$ .
Therefore, the area of $P^{''} Q^{''} R^{''}$ is $6$ square units.

Answer: A

Tips & Strategies

Draw it out! ✏️ If the ISEE gives you a transformation problem without a picture, sketch a quick coordinate grid on your scratch paper. It's much easier to see a slide or flip than to do it in your head.
Remember the vocabulary: 'Translate' means slide, 'Reflect' means flip, and 'Rotate' means spin. If you ever need to rotate $18 0^{\circ}$ , remember that is exactly $\frac{1}{2}$ of a full circle!

Common Mistakes

Watch out for reflecting over the wrong axis! If the question says $x$ -axis, you are jumping UP or DOWN, which changes the $y$ number. If it says $y$ -axis, you are jumping LEFT or RIGHT, which changes the $x$ number. It feels backward, so be careful! 🚦

Frequently Asked Questions

Do I need to memorize complicated rotation formulas for the ISEE?

Usually, no! Most ISEE questions for your level focus on translations (sliding), reflections (flipping), and basic symmetry. If rotations appear, they are usually visual puzzles rather than complex math formulas.

What does 'line of symmetry' mean?

It's an imaginary fold line. If you fold a shape along that line, both halves will match up perfectly. Think of folding a piece of paper to cut out a perfectly even heart!

Are transformations tested on both math sections?

Yes! You might see them as regular computation problems in the Mathematics Achievement section, or as comparing two shapes (Column A vs Column B) in the Quantitative Reasoning section.

What if I forget the reflection rules during the test?

Don't panic! Just draw a quick grid on your scratch paper, put a dot where the point is, and literally count the jumps to the axis, then count the same number of jumps to the other side.
