SSAT Upper Level

Angles

Q: What if a question asks for half of a supplementary angle?

First, remember that supplementary angles add to `180^\circ`. If you need exactly half of that straight line, you would calculate `180^\circ \cdot \frac{1}{2} = 90^\circ`!

Angle relationships (supplementary, complementary, vertical), parallel line angles, and interior angle sums of polygons

Generate Unlimited Practice Questions

Start Free Practice

Learn This Topic

Have you ever opened a fresh pizza box and noticed how the slices meet in the middle? Those pointy corners are angles! 🍕 In geometry, angles measure how far apart two lines are opened up. Imagine a crocodile opening its mouth—a little bite is a small angle, and a big chomp is a large angle! 🐊

On the SSAT, Angles and Lines are like a giant puzzle. You just need to know a few secret rules to solve them. First, a straight line is always $18 0^{\circ}$ . If you split a straight line into two angles, they are called "supplementary" angles. Think of them as two best friends who always share a $18 0^{\circ}$ skateboard halfpipe! If two lines cross each other like an "X" on a treasure map, the angles opposite each other are exactly the same size. We call these "vertical angles." ✖️

What about shapes? A triangle is like a folded-up straight line—all its inside angles always add up to $18 0^{\circ}$ . If you add one more side to make a quadrilateral (like a square, rectangle, or a funky kite), the inside angles will always add up to $36 0^{\circ}$ . Think of $36 0^{\circ}$ as doing a full spin on a snowboard! 🏂

If you remember these magical numbers ( $9 0^{\circ}$ for corners, $18 0^{\circ}$ for lines and triangles, and $36 0^{\circ}$ for full circles and 4-sided shapes), you will absolutely crush the geometry questions on your SSAT! You don't need a protractor, just your awesome math skills! Let's dive in!

Key Formula

The sum of interior angles in a polygon with

n

sides is

(n - 2) \cdot 18 0^{\circ}

. To find the measure of just ONE angle in a perfectly regular polygon, use the fraction formula:

\frac{( n - 2 ) \cdot 18 0 ^{\circ}}{n}

Practice Questions

4 practice questions for SSAT Upper Level

Q1 Hard

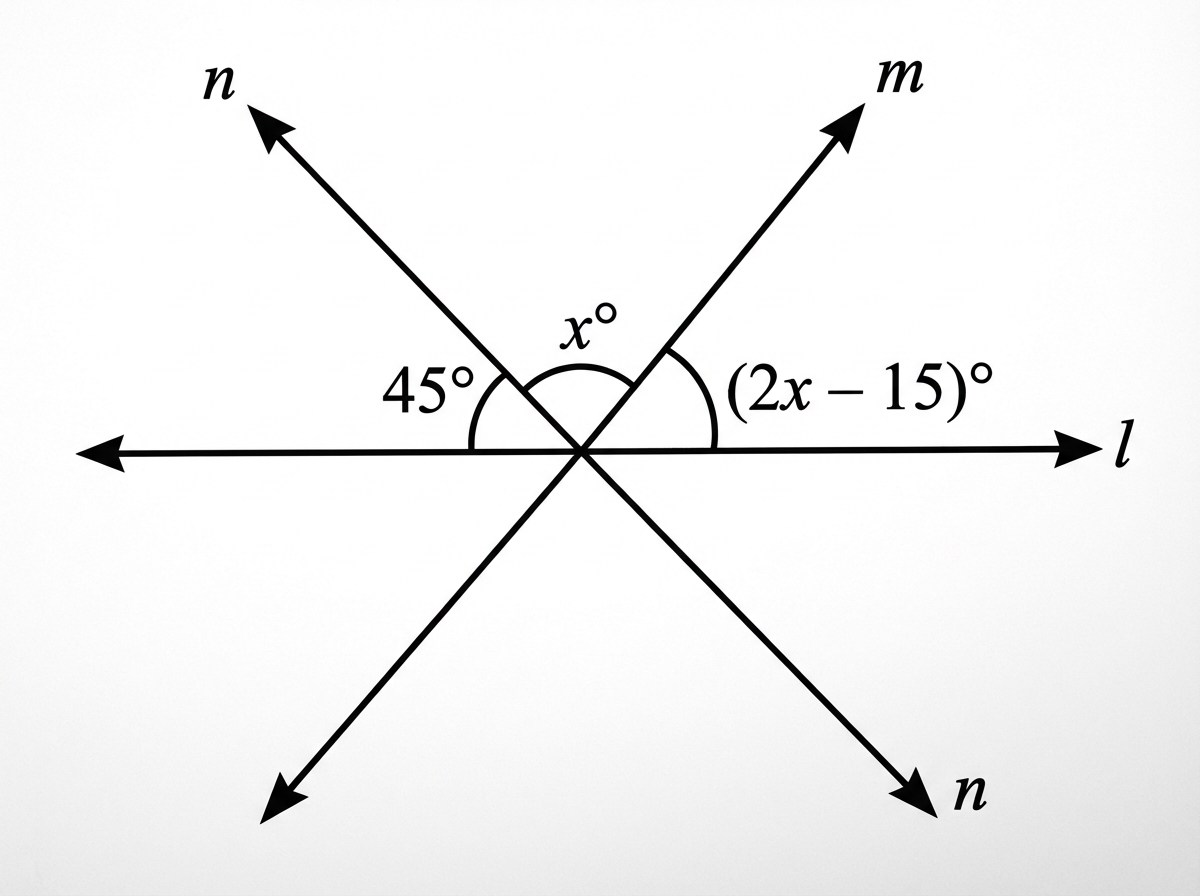

Lines

l

m

, and

n

intersect at a single point, forming six angles around the point. If three adjacent angles that together form a straight line measure

4 5^{\circ}

x^{\circ}

, and

(2 x - 15)^{\circ}

, what is the value of

x

A 30

B 40

C 45

D 50

E 60

Show Solution

Since the three adjacent angles form a straight line, their sum must be $18 0^{\circ}$ . We can set up the equation: $45 + x + (2 x - 15) = 180$ . Combine like terms to get $3 x + 30 = 180$ . Subtract 30 from both sides: $3 x = 150$ . Divide by 3 to find $x = 50$ .

Answer: D

Q2 Hard

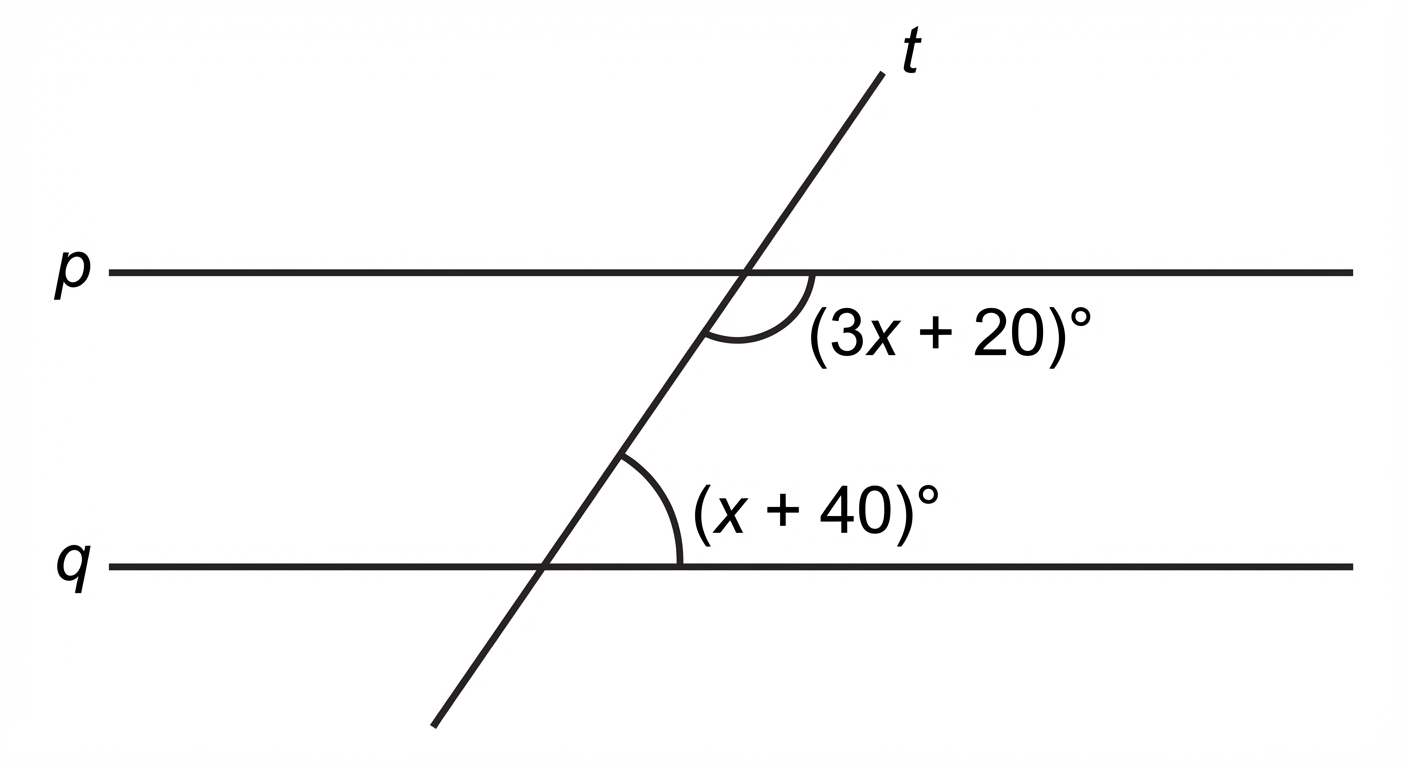

Parallel lines

p

and

q

are intersected by a transversal line

t

. Two interior angles on the same side of the transversal have measures of

(3 x + 20)^{\circ}

and

(x + 40)^{\circ}

. What is the measure of the smaller of these two angles?

A 30 degrees

B 50 degrees

C 70 degrees

D 90 degrees

E 110 degrees

Show Solution

When two parallel lines are cut by a transversal, interior angles on the same side of the transversal are supplementary (they add up to $18 0^{\circ}$ ). Therefore, $(3 x + 20) + (x + 40) = 180$ . Combine like terms to get $4 x + 60 = 180$ . Subtract 60 from both sides to get $4 x = 120$ , which means $x = 30$ . Substitute $x = 30$ back into the angle expressions: $3 (30) + 20 = 11 0^{\circ}$ and $30 + 40 = 7 0^{\circ}$ . The smaller angle is $7 0^{\circ}$ .

Answer: C

Q3 Hard

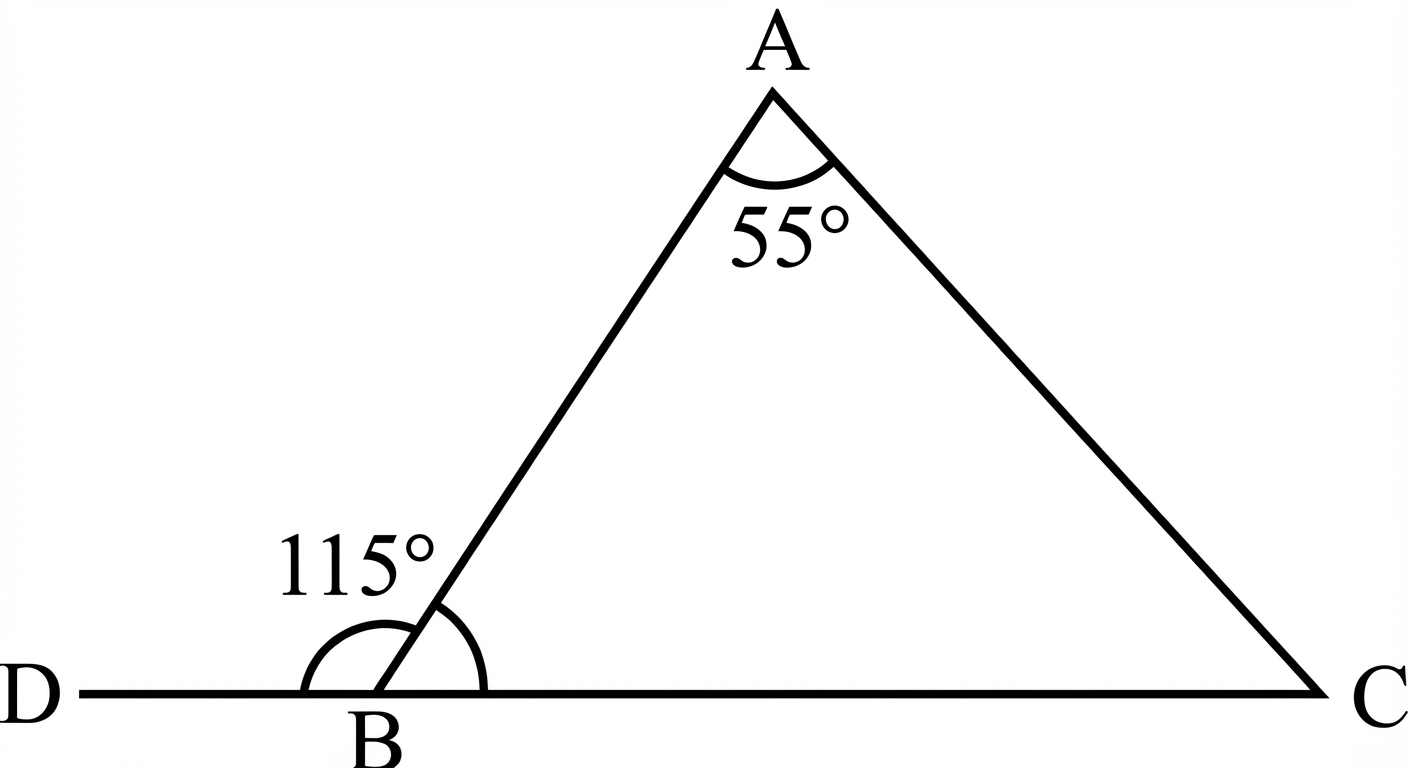

△ A B C

, the measure of

∠ A

5 5^{\circ}

. If the exterior angle at vertex

B

measures

11 5^{\circ}

, what is the measure of

∠ C

A 55 degrees

B 60 degrees

C 65 degrees

D 115 degrees

E 125 degrees

Show Solution

The Exterior Angle Theorem states that the measure of an exterior angle of a triangle is equal to the sum of the measures of its two remote interior angles. Therefore, the exterior angle at $B$ equals the sum of $∠ A$ and $∠ C$ . We can write this as $11 5^{\circ} = 5 5^{\circ} + ∠ C$ . Subtracting $5 5^{\circ}$ from $11 5^{\circ}$ gives $∠ C = 6 0^{\circ}$ .

Answer: B

Q4 Hard

The measures of the interior angles of a quadrilateral are in the ratio

2 : 3 : 4 : 6

. What is the measure of the largest angle in the quadrilateral?

A 24 degrees

B 72 degrees

C 96 degrees

D 144 degrees

E 150 degrees

Show Solution

The sum of the interior angles of any quadrilateral is $36 0^{\circ}$ . Let the angles be $2 x$ , $3 x$ , $4 x$ , and $6 x$ . Their sum is $2 x + 3 x + 4 x + 6 x = 15 x$ . Setting this equal to 360 gives $15 x = 360$ . Dividing both sides by 15 yields $x = 24$ . The largest angle corresponds to $6 x$ , so its measure is $6 (24) = 14 4^{\circ}$ .

Answer: D

Tips & Strategies

Look for the 'Z' pattern! When you have parallel lines, draw a giant 'Z' over them. The angles tucked inside the corners of the 'Z' are always equal (these are called alternate interior angles).
Don't trust your eyes! SSAT pictures are usually 'not drawn to scale.' An angle might look like a tiny slice of pie (like $3 0^{\circ}$ ), but the math might say it's $12 0^{\circ}$ . Always trust the numbers, not the drawing.

Common Mistakes

Watch out for mixing up 'Supplementary' and 'Complementary'. A great trick: 'C' comes before 'S' in the alphabet, and $9 0^{\circ}$ comes before $18 0^{\circ}$ . Complementary = $9 0^{\circ}$ , Supplementary = $18 0^{\circ}$ !
Don't forget that a triangle has $18 0^{\circ}$ inside, but a 4-sided shape has $36 0^{\circ}$ . Many students accidentally try to make a square's angles add up to $18 0^{\circ}$ !

Frequently Asked Questions

Do I need to bring a protractor for the SSAT?

Nope! You are actually not allowed to use a protractor on the test. You will solve all angle questions using math rules (like addition and subtraction), not by measuring them.

What exactly is a vertical angle?

When two straight lines cross like an X, the angles directly across from each other are vertical angles. Think of them as mirror images—they are always exactly the same size!

How do I remember the angles of bigger shapes like pentagons?

Use the magic formula! Subtract 2 from the number of sides, then multiply by $18 0^{\circ}$ . For a 5-sided pentagon, it's $(5 - 2) \cdot 18 0^{\circ} = 3 \cdot 18 0^{\circ} = 54 0^{\circ}$ .

What if a question asks for half of a supplementary angle?

First, remember that supplementary angles add to $18 0^{\circ}$ . If you need exactly half of that straight line, you would calculate $18 0^{\circ} \cdot \frac{1}{2} = 9 0^{\circ}$ !
