Visual & Spatial Reasoning
Non-coordinate spatial reasoning: net folding, cube counting/painting, paper folding, figure rotation recognition, and 3D visualization — excludes coordinate-based transformations (see transformations)
Generate Unlimited Practice Questions
Sign up for free and get 50 practice questions to start your prep.
Start Free PracticeLearn This Topic
Have you ever tried to cram a giant sleeping bag into a tiny stuff sack, or played a video game like Minecraft where you build 3D worlds block by block? 🎮 If so, you already use Visual and Spatial Reasoning! On the SSAT, this math topic is like a brain-gym where you get to show off your superpower of twisting, turning, and folding shapes—all entirely inside your head! 🧠
Spatial reasoning isn't about memorizing long, boring math rules or doing crazy long division. Instead, it's about imagining what happens when you fold a flat piece of paper into a box (we call that a "net"), or figuring out what a painted block looks like if you spin it around. Imagine you have a pizza box. When it's flat, it looks like a weird cardboard alien. But when you fold the sides up, boom—it's a 3D box ready to hold a delicious pepperoni pizza! 🍕
When you see these questions on the SSAT, don't panic. You don't need magic to solve them. You just need to look for clues, like matching up the sides of a box, tracking where a specific shape goes when it rotates, or counting hidden cubes in a stack that you can't see but know must be there holding the top ones up. Get ready to be a shape ninja! 🥷
Practice Questions
7 practice questions for SSAT Upper Level
Show Solution

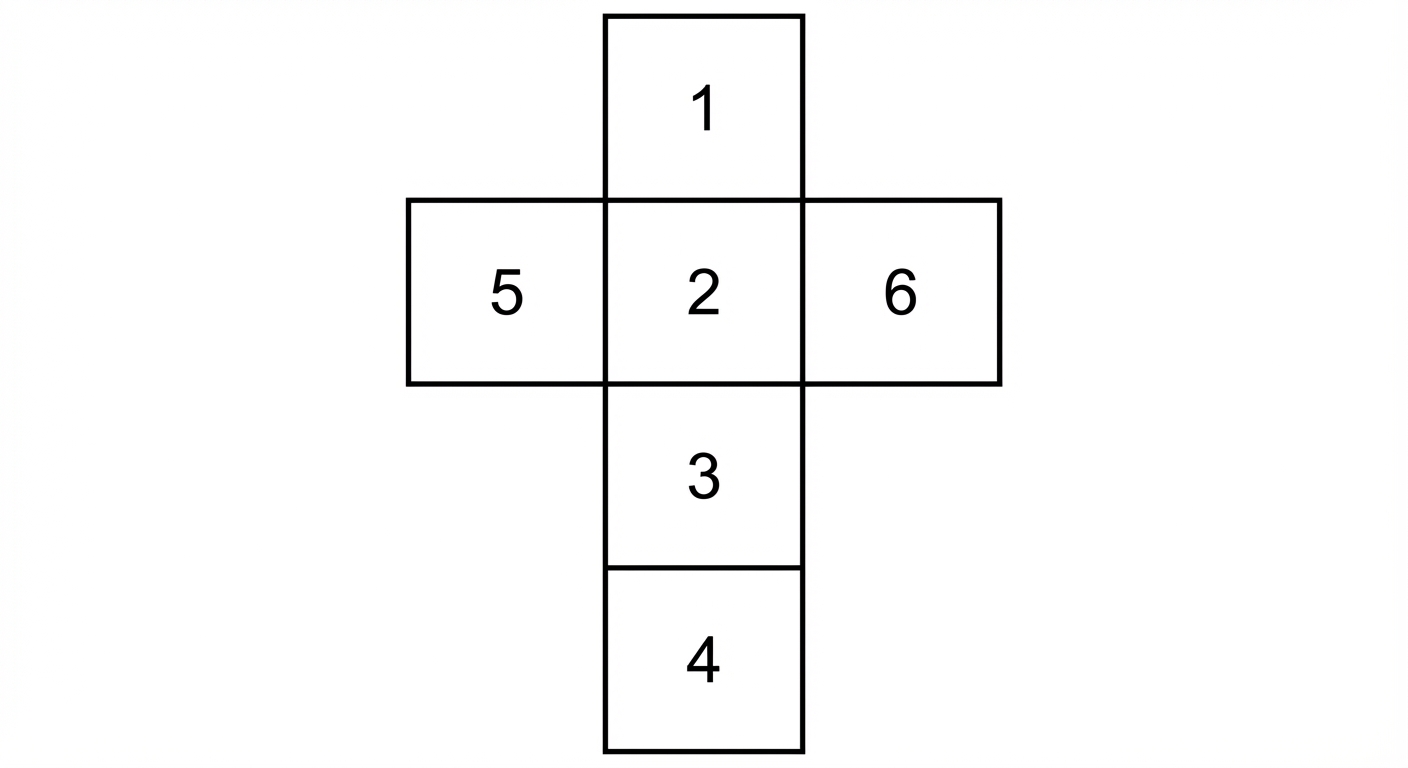

- To visualize the folded cube, let square 2 be the bottom base. Square 1 folds up to become the back face, and square 3 folds up to become the front face. Square 4 folds over square 3 to become the top face. Square 5 folds up to become the left face, and square 6 folds up to become the right face. Therefore, square 1 (the back face) and square 3 (the front face) are opposite each other.
Show Solution

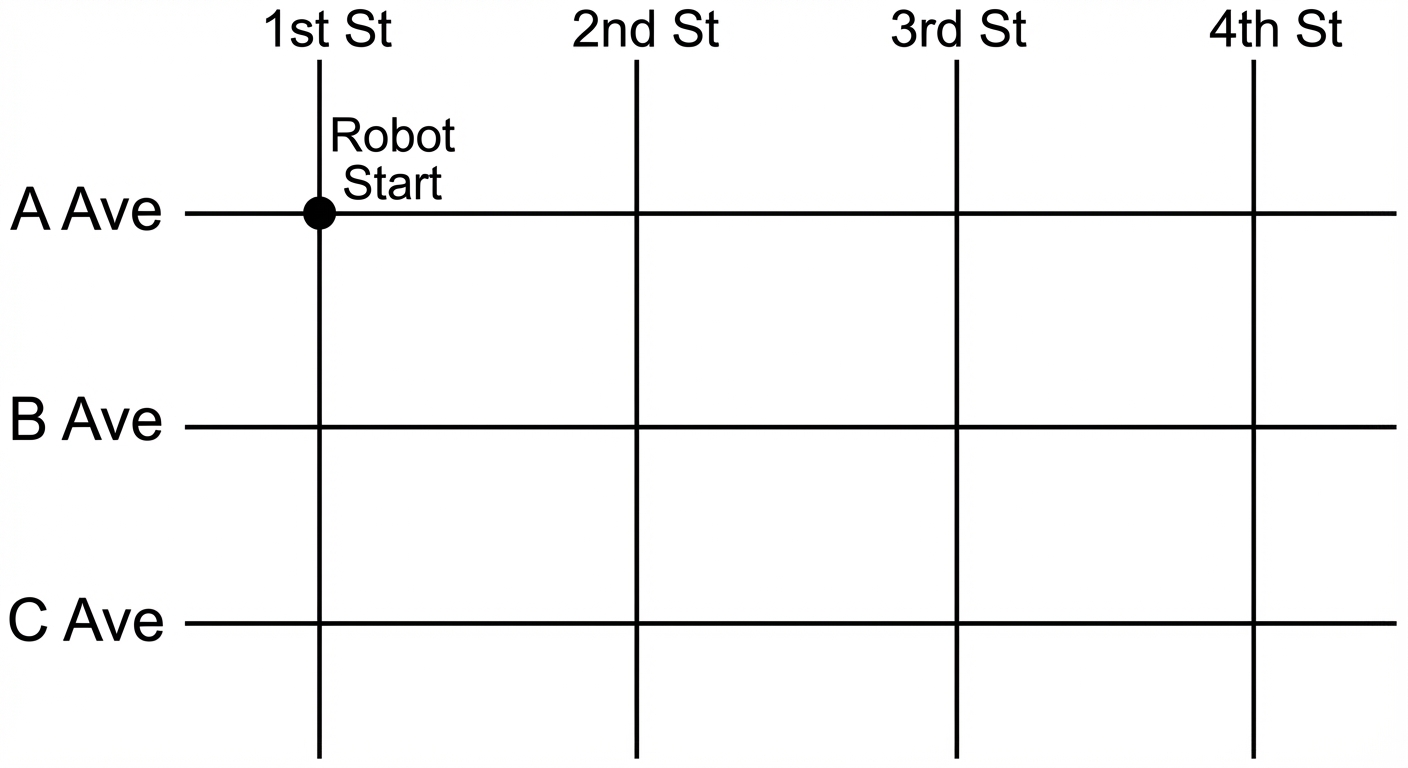

- The grid is 3 blocks wide (East) and 2 blocks high (South). To get from the northwest corner to the southeast corner, the robot must move exactly 3 blocks East and 2 blocks South, for a total of 5 moves. Any valid path is just a unique arrangement of 3 Easts and 2 Souths. The number of unique paths can be found using the combinations formula for arranging items: . There are 10 different paths.
Show Solution

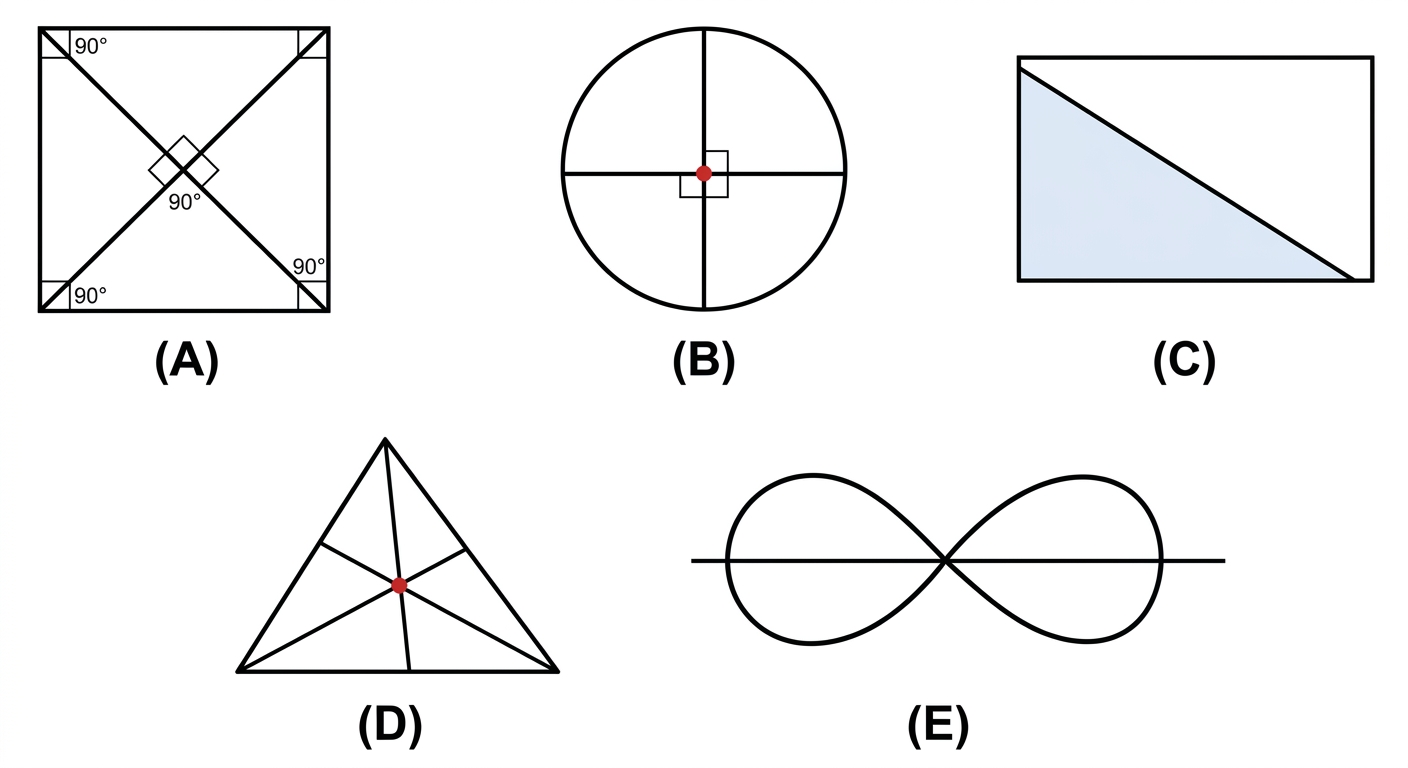

- Let's count the number of lines meeting at each vertex (the degree) for the choices.
(A) A square with two diagonals has 4 corners, and 3 lines meet at each corner. That is 4 odd vertices (cannot be drawn).
(B) A circle with a cross inside has 4 points on the circle where 3 lines meet. That is 4 odd vertices (cannot be drawn).
(C) A rectangle with one diagonal has two corners where 2 lines meet, and two corners where 3 lines meet. This figure has exactly 2 odd vertices, meaning it can be drawn in one continuous motion.
(D) A triangle with lines to the center has 4 odd vertices (the 3 corners and the center, each having 3 lines).
(E) This figure would have multiple intersections with odd degrees, failing the rule.
Show Solution

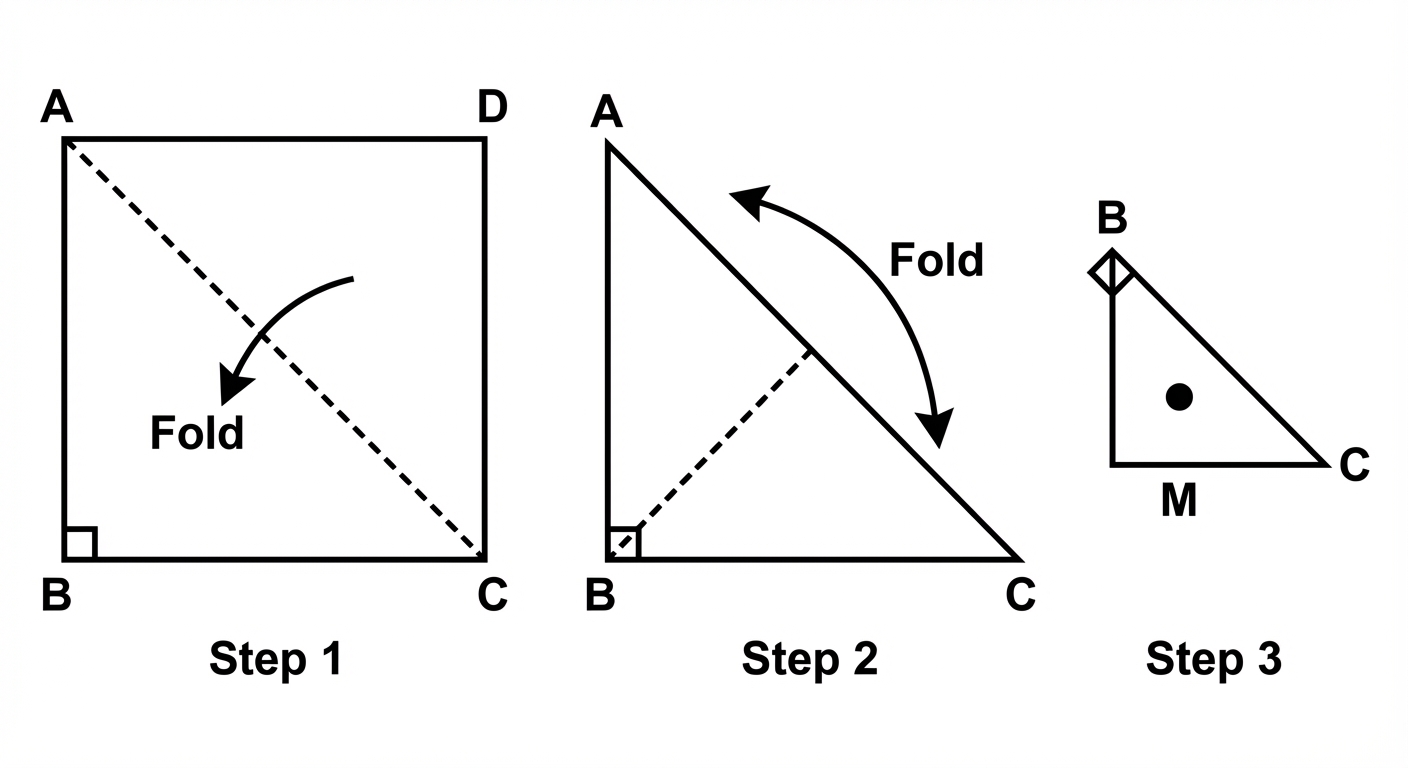

- The paper is folded twice, creating 4 equal layers. Punching a single hole through all layers will result in 4 distinct holes when the paper is unfolded. Because the hole was punched in the center of the folded triangle (and not on any of the folded edges or outer corners), the holes will be located in the interior of the four quadrants of the original square. Unfolding the paper reveals a symmetrical pattern of 4 holes that act as the corners of a smaller square.
Show Solution

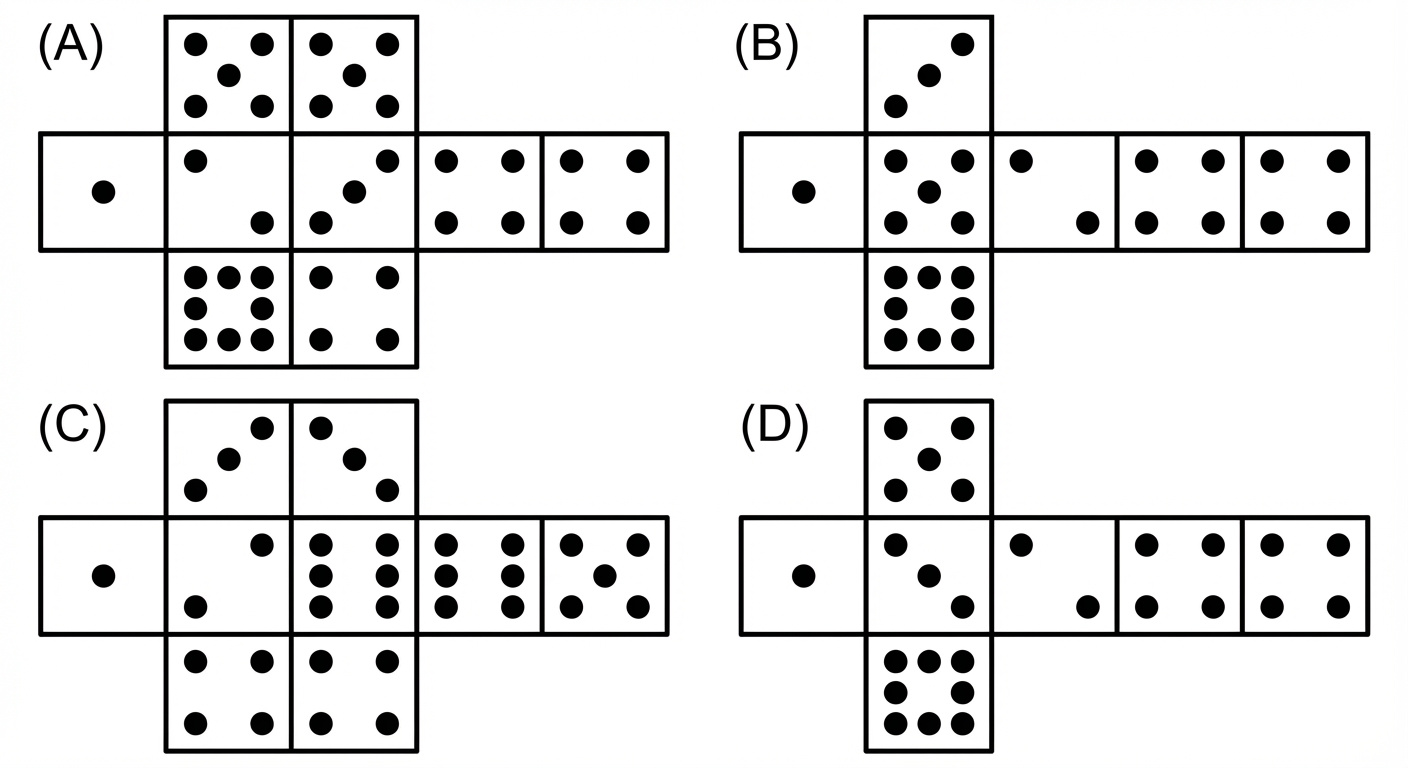

- When folding a net shaped like a cross (a row of four squares with two flaps on the sides), faces that are separated by exactly one square in a straight line will end up opposite each other on the 3D cube. The two flaps will also be opposite each other. Let's test the choices to find which one creates opposite pairs that sum to 7.
In (A), the opposite pairs are 1 & 3 (sum is 4), 2 & 4 (sum is 6), and 5 & 6 (sum is 11). This is incorrect.
In (B), the opposite pairs are 1 & 2 (sum is 3), 5 & 4 (sum is 9), and 3 & 6 (sum is 9). This is incorrect.
In (C), the opposite pairs in the horizontal row are 1 & 6 (sum is 7) and 2 & 5 (sum is 7). The two flaps are 3 & 4 (sum is 7). Since all opposite pairs sum to 7, this forms a standard die.
In (D), the opposite pairs are 1 & 2 (sum is 3), 3 & 4 (sum is 7), and 5 & 6 (sum is 11). This is incorrect.
Show Solution
- To solve this spatial reasoning problem, track where the original corners of the paper end up after each fold.
When the paper is folded from left to right, the two left corners meet the two right corners. The crease is on the left, and the open edges are on the right.
When it is folded from top to bottom, the two top corners meet the two bottom corners. The creases are now on the left and the top, while the bottom and right sides are open edges.
The bottom-right corner of the folded paper consists entirely of the open edges, which correspond to the four original outer corners of the unfolded square. Because the cut is made at this bottom-right corner, all four of the original corners of the paper are removed. Unfolding the paper reveals a square with all four outer corners cut off.
Show Solution

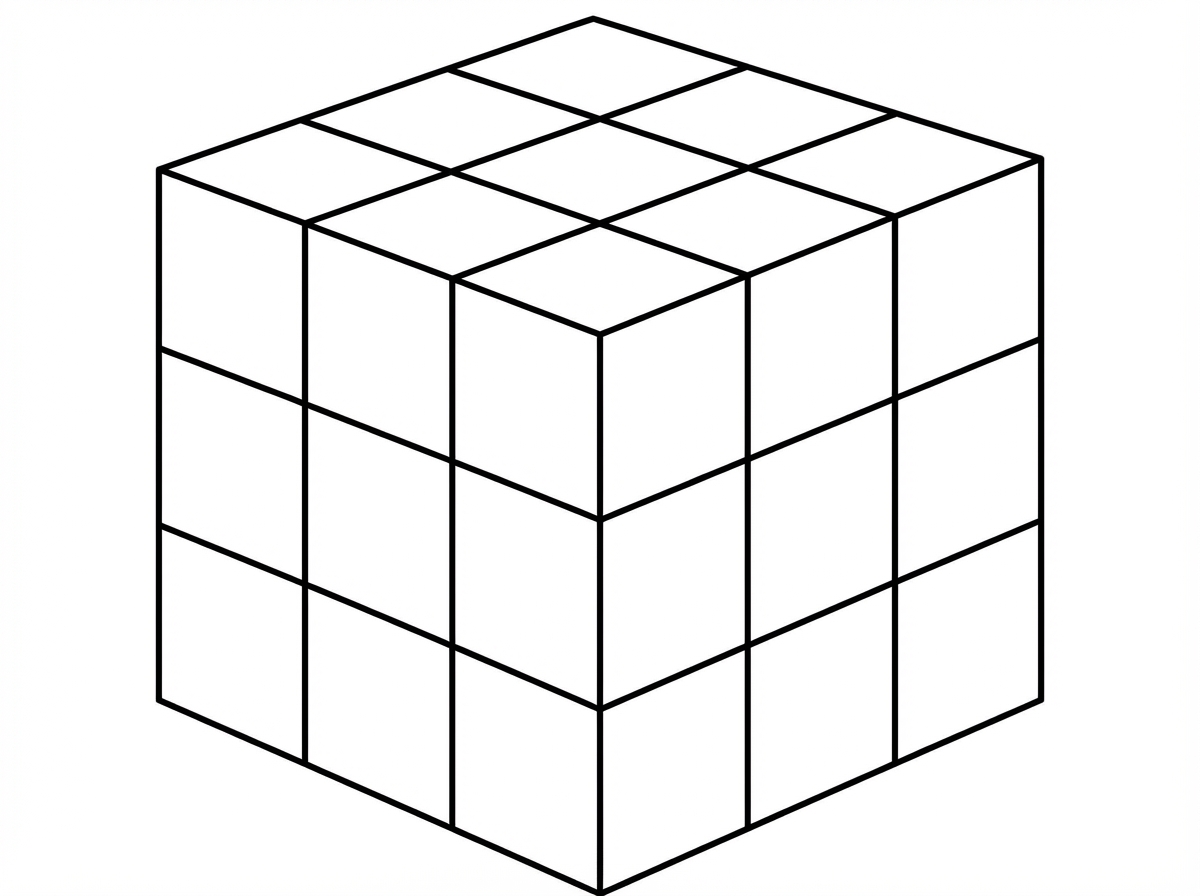

- To determine how many faces of each small cube are painted, consider their position in the large cube:
- 1. Corner cubes have 3 exposed faces, so they have 3 painted faces. A cube has 8 corners, so there are 8 of these.
- 2. Cubes in the center of each face have 1 exposed face, so they have 1 painted face. A cube has 6 faces, so there are 6 of these.
- 3. The cube in the very center of the large cube is completely hidden, so it has 0 painted faces. There is 1 of these.
- 4. Cubes on the edges, between the corners, have exactly 2 exposed faces. A cube has 12 edges. On a cube, each edge contains 3 small cubes, but the 2 cubes on the ends are corners. This leaves exactly 1 middle cube per edge that has exactly two faces painted. Since there are 12 edges, there are cubes with exactly two faces painted.
Tips & Strategies
- Draw it out! ✏️ If you can't see the hidden blocks in a stack, lightly sketch them on your test booklet or write the number of blocks in each column right on top of the picture.
- Track a single feature. 👀 When rotating a 3D shape in your head, pick one unique feature (like a star, a dark spot, or a weird corner) and track where that one thing goes instead of trying to spin the whole shape at once.
- Use your hands! ✋ You can physically spin your eraser or use your fingers to mimic folding a box to help your brain imagine the rotation during the test.
Common Mistakes
- Watch out for floating blocks! 🧱 In cube-stacking problems, remember that floating blocks need blocks underneath them to hold them up. Don't just count the ones you can see; count the hidden supports too!
- Don't forget that a cube has sides! When looking at a flat 'net' that is supposed to fold into a cube, if it only has squares, it will make a box with no lid, not a closed cube.
Frequently Asked Questions
Do I need to be good at drawing to do well on this?
Not at all! 🎨 You just need to be good at imagining. Simple scribbles, writing numbers, or just using your hands to mimic the shapes is more than enough to find the right answer.
Will there be complex 3D shapes like dodecahedrons on the SSAT?
Nope! The SSAT sticks to basic shapes you know well, like cubes, rectangular prisms (boxes), and simple pyramids. You won't need to fold a 20-sided dice!
How can I practice spatial reasoning at home?
Play with building blocks like LEGOs, do jigsaw puzzles, or try folding origami! Even playing video games like Tetris or Minecraft is secretly great spatial reasoning practice. 🕹️
What if I completely blank out on a paper folding question?
Try to work backwards! Look at the final unfolded shape in the answer choices and imagine folding it up. Does the hole end up where the question said it was? Eliminating wrong answers is a great backup strategy.
